GBxCart RW - my latest Game Boy Gadget

August 22, 2022

TL;DR: The GBxCart RW module can be used to read or write Game Boy ROMs. Also, it can retrieve photos taken with the Game Boy camera.

Last week, the GBxCart RW, which I had ordered recently, finally arrived.

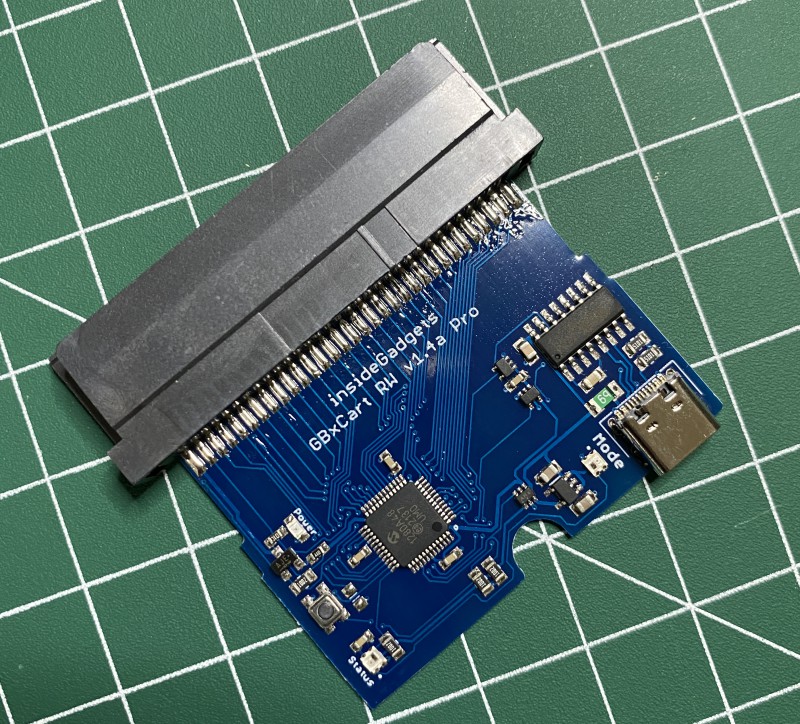

The GBxCart module

It's a piece of custom hardware that can used used with Game Boy (Advance|Color) cartridges to read and write ROM data.

The Software

The software is available for Windows, Mac and Linux. On my Mac, I simply installed it via Python's pip command.

pip3 install "FlashGBX[qt6]"

Note: If you are using the zsh shell, like me, you probably MUST quote the package name due to the bracket ([, ]) characters in it.

Then, simply connect the cartridge via a USB-C cable and run the software like this.

python3 -m FlashGBX

On its first start up, the software asked about a firmware update for the GBxCart, so that's what I did.

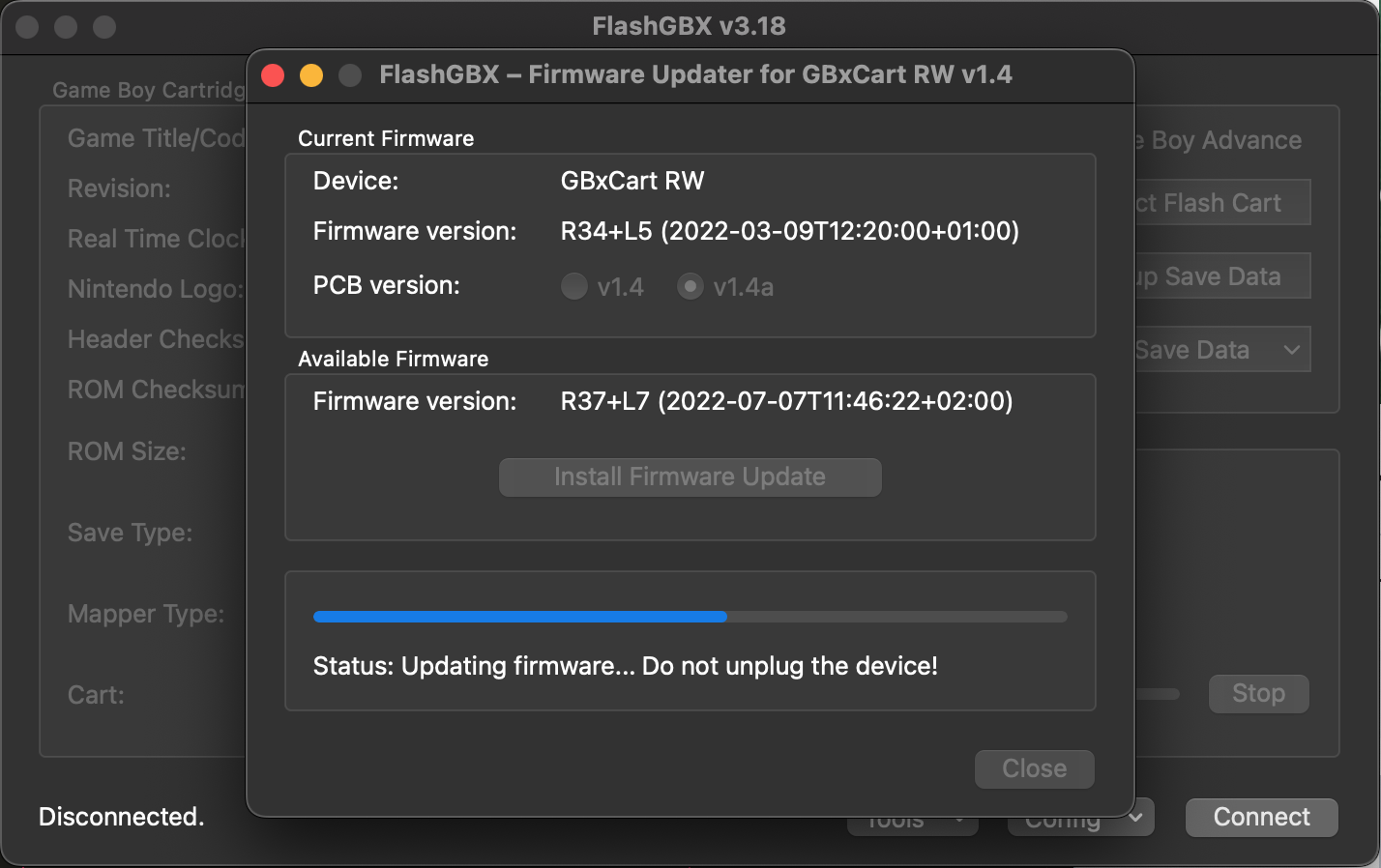

The software presents a firmware update dialog

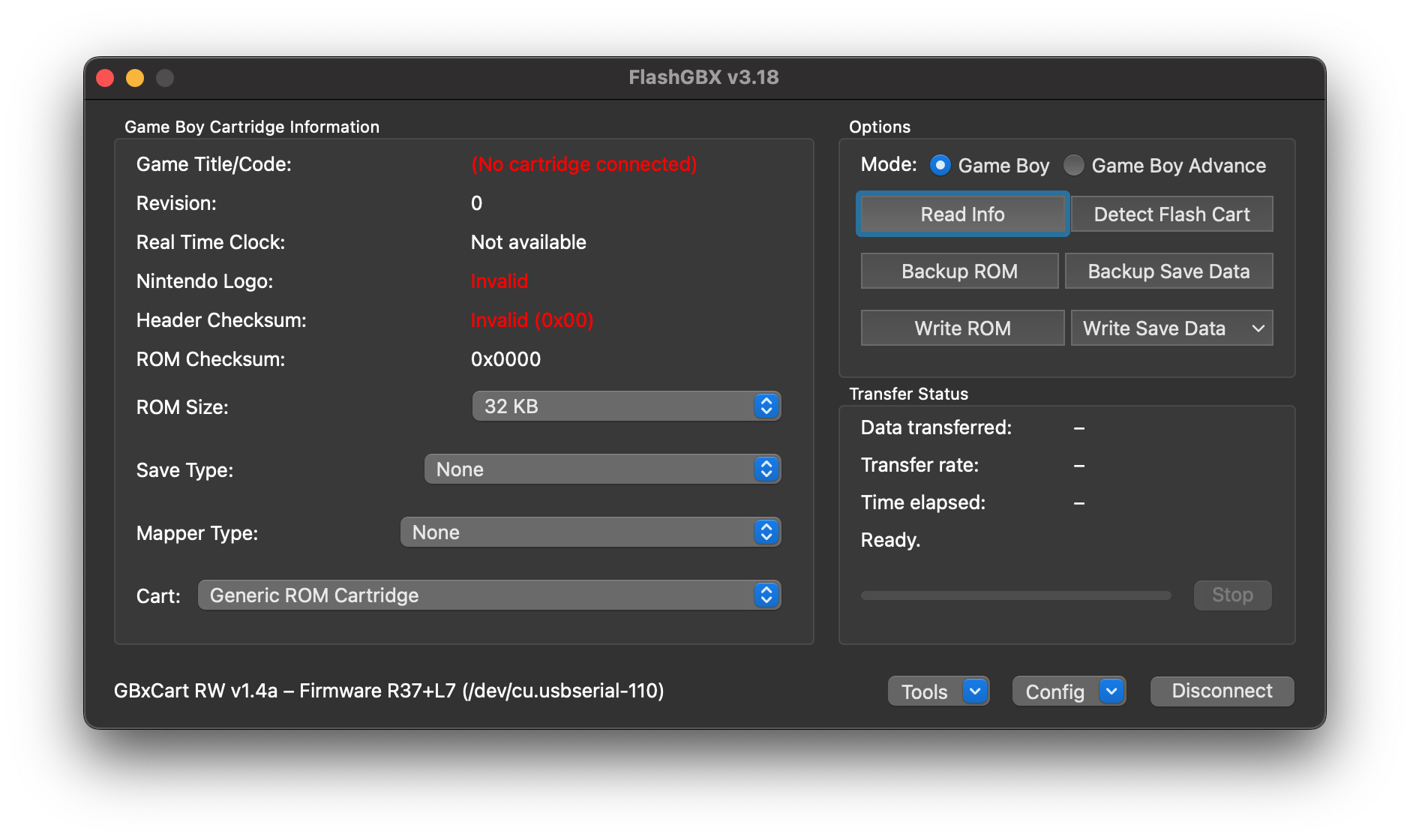

When running the software again, with the now up-to-date firmware of the GBxCart, it (rightly) displayed a "No cartridge connected" message.

No cartridge connected

Hence, I changed that and connected one!

The Game Boy Camera

I first connected the Game Boy Camera. This is a really neat piece of hardware that was released in 1998 and was probably the first easily accessible digital camera. It even acted as a selfie-cam (by rotating the camera's head) before we even had a word for that.

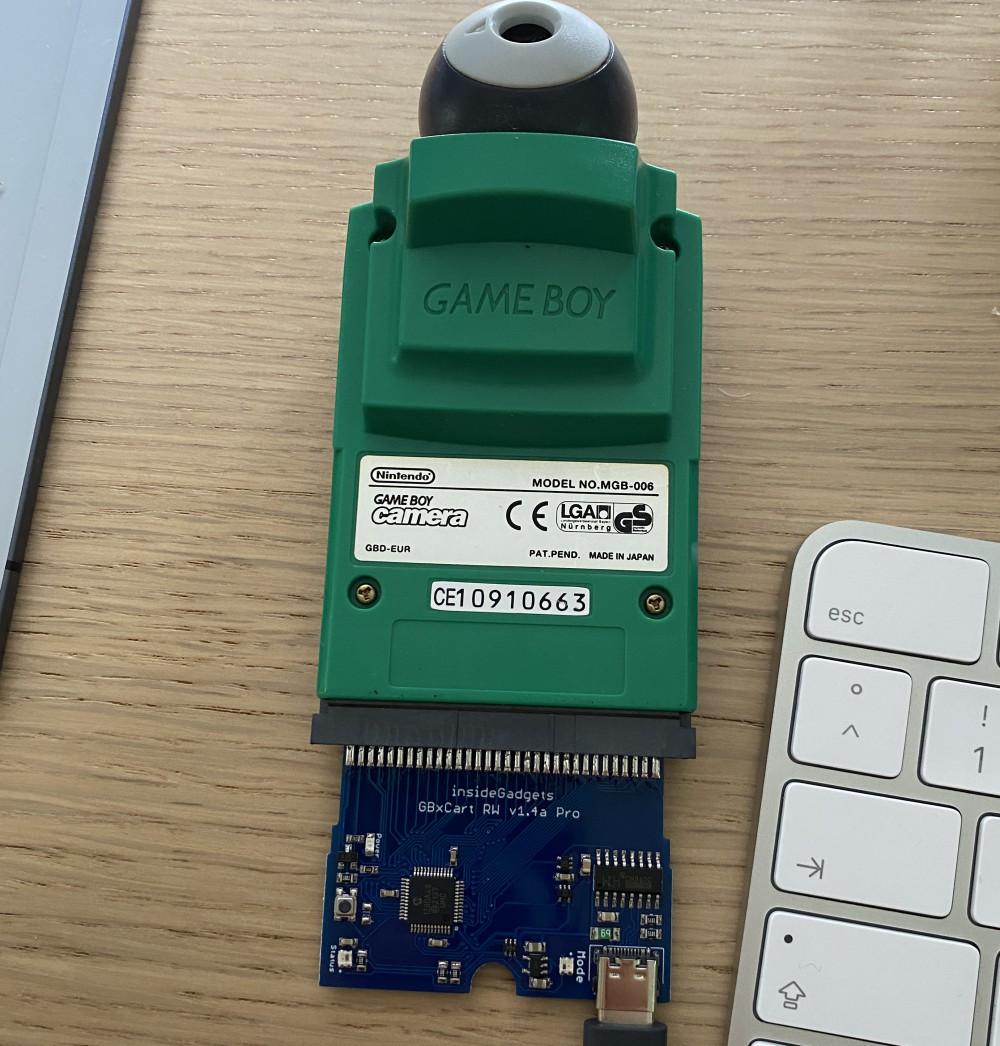

The Game Boy Camera

The main drawback of this camera was that there's was no way of getting its pictures off the cartridge (apart from printing it with the Game Boy Printer).

Well, now with the GBxCart there is a way to get these photos on a computer 🤩.

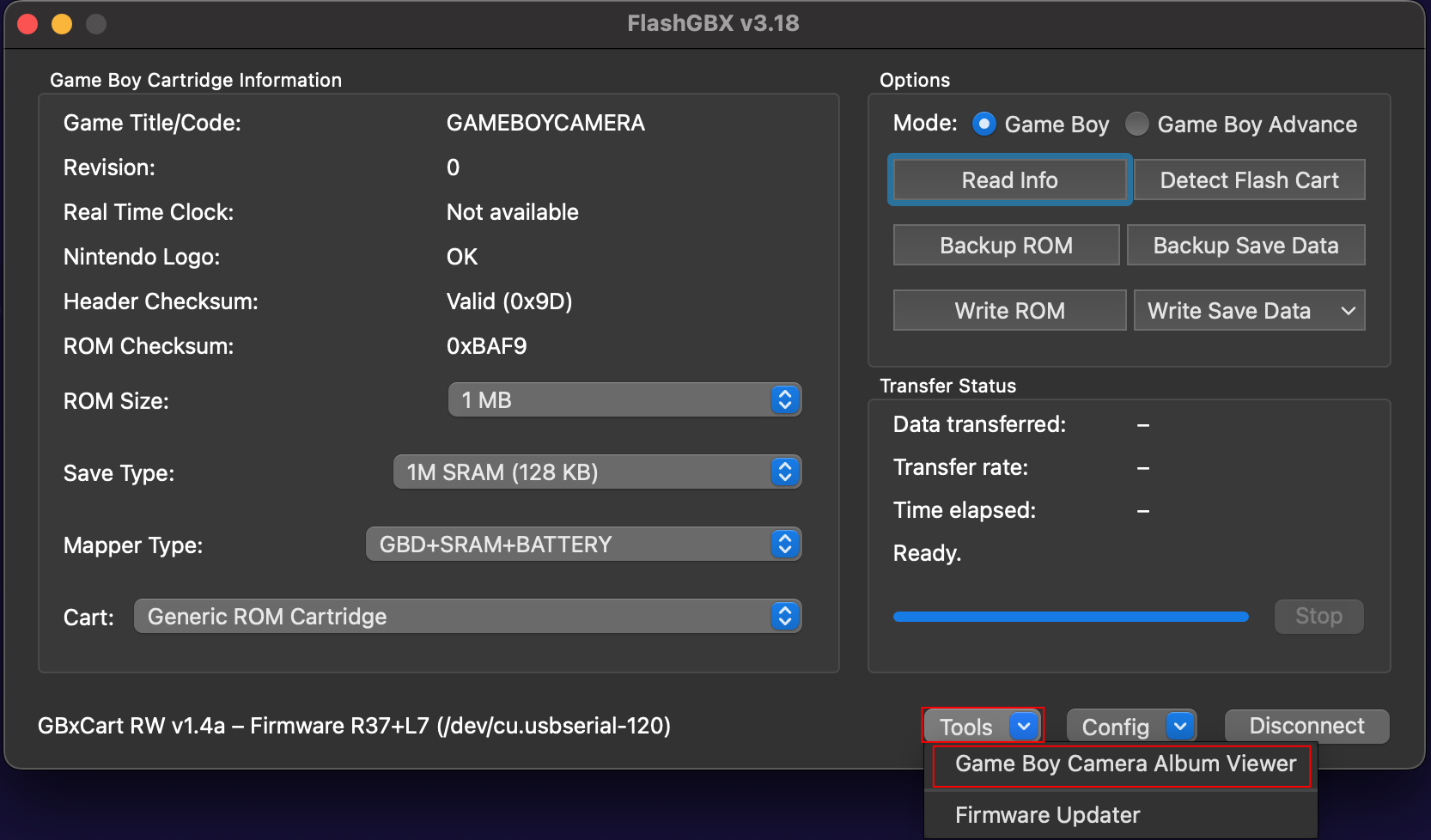

The Game Boy Camera cartridge was correctly recognized

The connected Game Boy Camera was immediately recognized by the module and the software even has a dedicated "Camera Album Viewer" (see screenshot above) for easily downloading the photos in different gray/green-scale tones and sizes.

Game Boy Camera mugshot #1 in original resolution Game Boy Camera mugshot #2 in original resolution Game Boy Camera mugshot #3 in original resolution

Here's the same set of images resized to double.

Game Boy Camera mugshot #1 resized Game Boy Camera mugshot #2 resized Game Boy Camera mugshot #3 resized

Fantastic! Extracting photos from the Game Boy Camera is something I always wanted to do.

Extracting a Game Boy ROM

The other obvious features is, of course, backing up cartridges.

I tried this out with Kung Fu Master, which is the first Game Boy game I ever owned (well, apart from Tetris obviously).

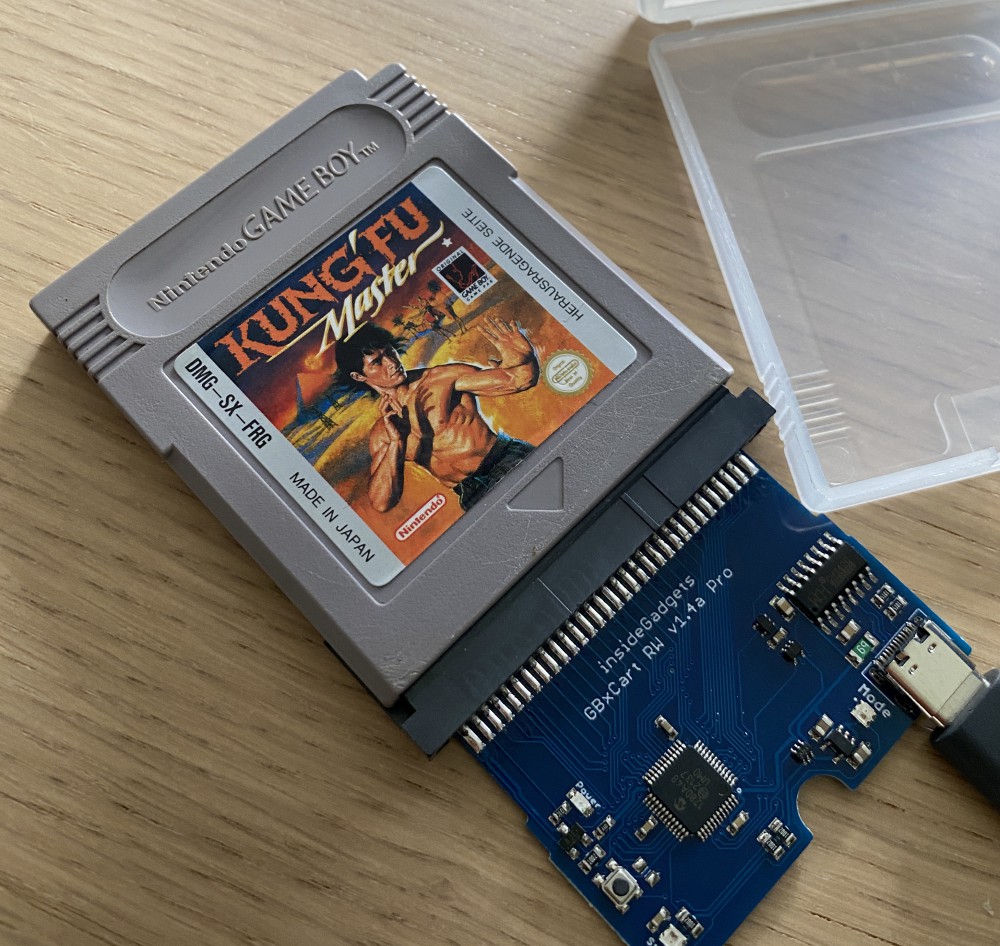

The Kung Fu Master cartridge

Again, the cartridge was immediately recognized.

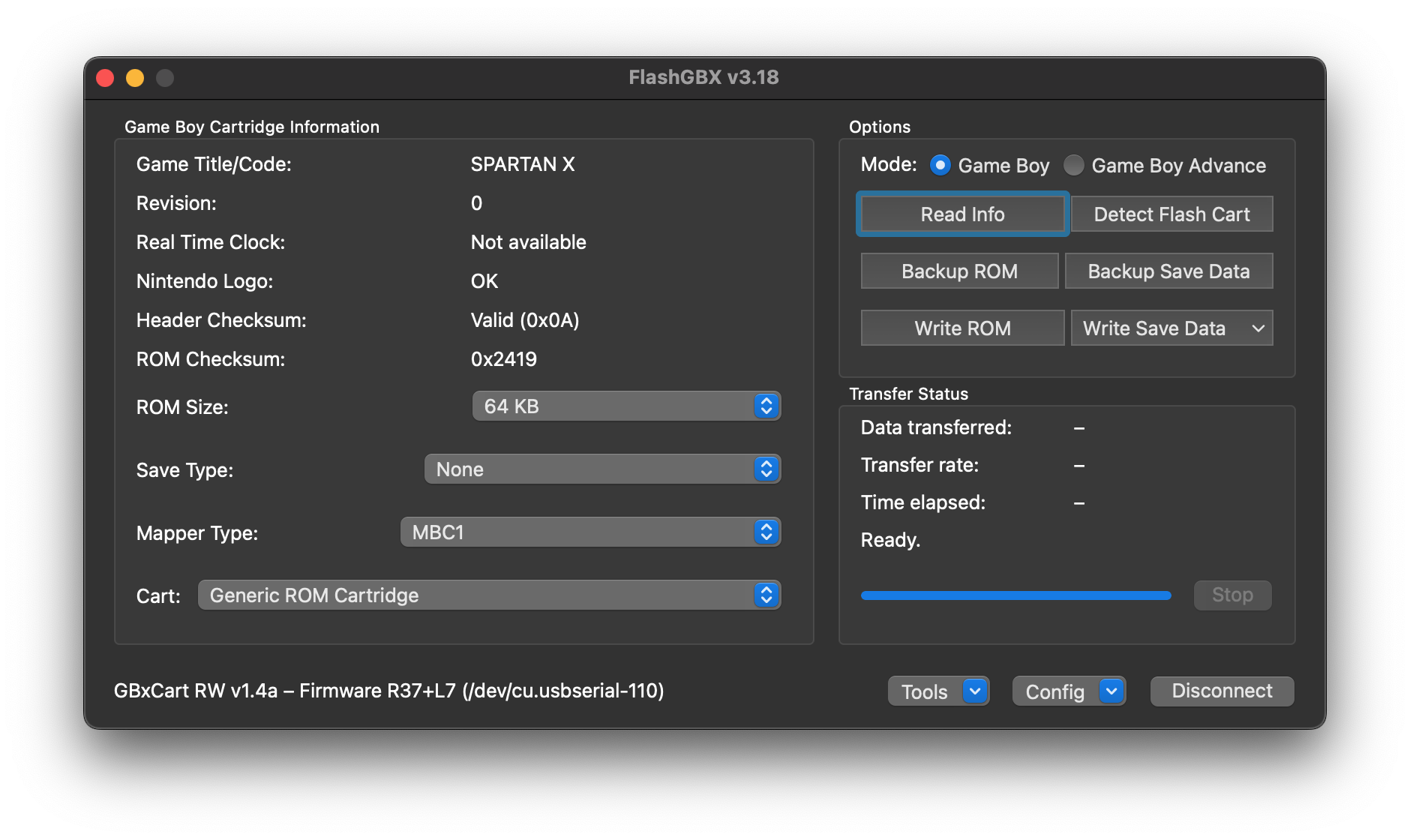

The Kung Fu Master cartridge connected

Note that it appears under its original Japanese title of Spartan X.

Extracting ROMS like this is also a perfectly legal way to play all those ancient games on emulators like RetroPie.

I have e.g. the GPi CASE, which is a RaspberryPi Zero powered handheld running RetroPie. The extracted ROM ran flawlessly on that.

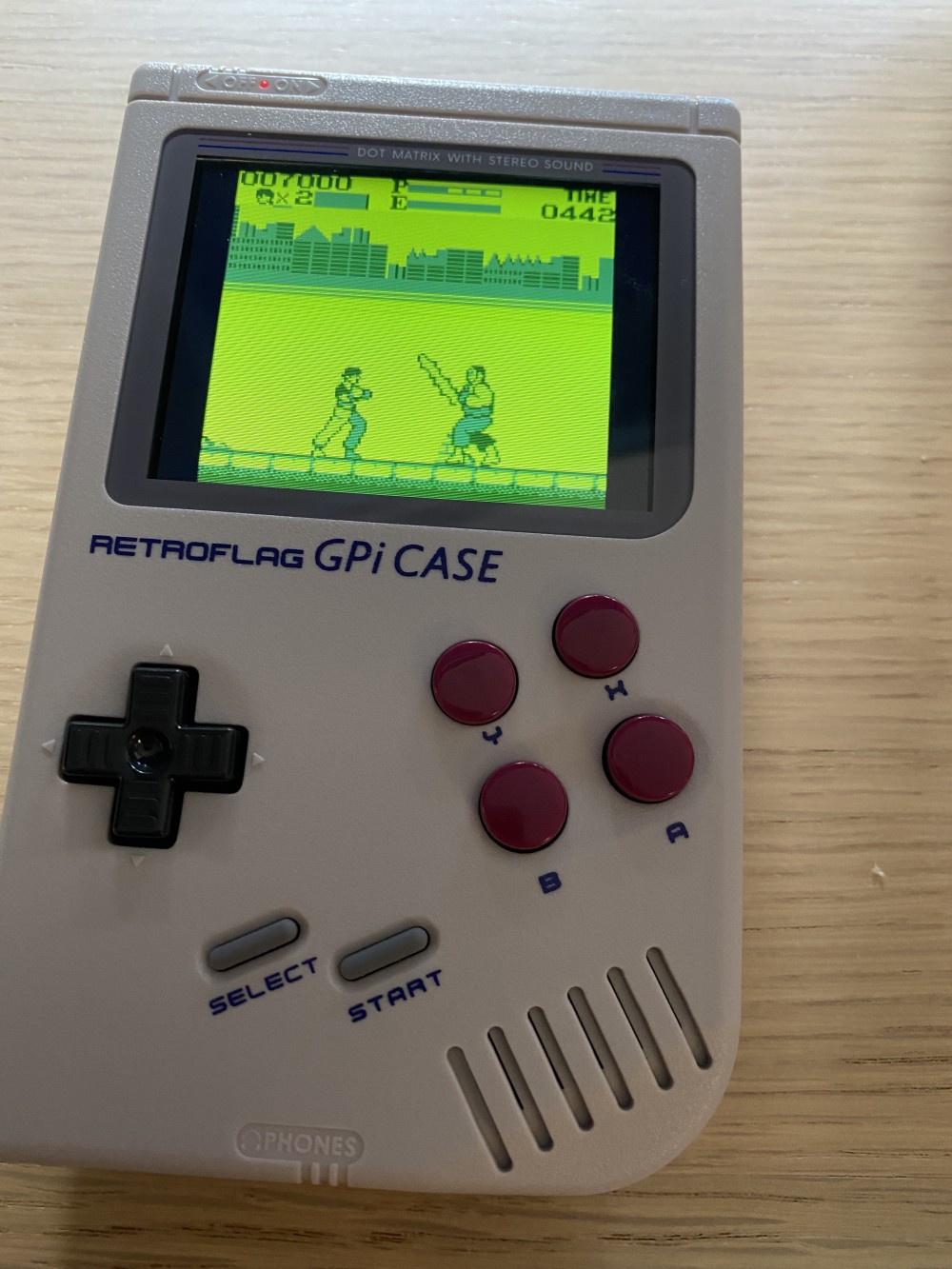

Kung Fu Master running on the Raspberry Pi handheld

I also have this DIY arcade machine which runs RetroPie as well. Playing Game Boy games on the big screen is actually quite the experience.

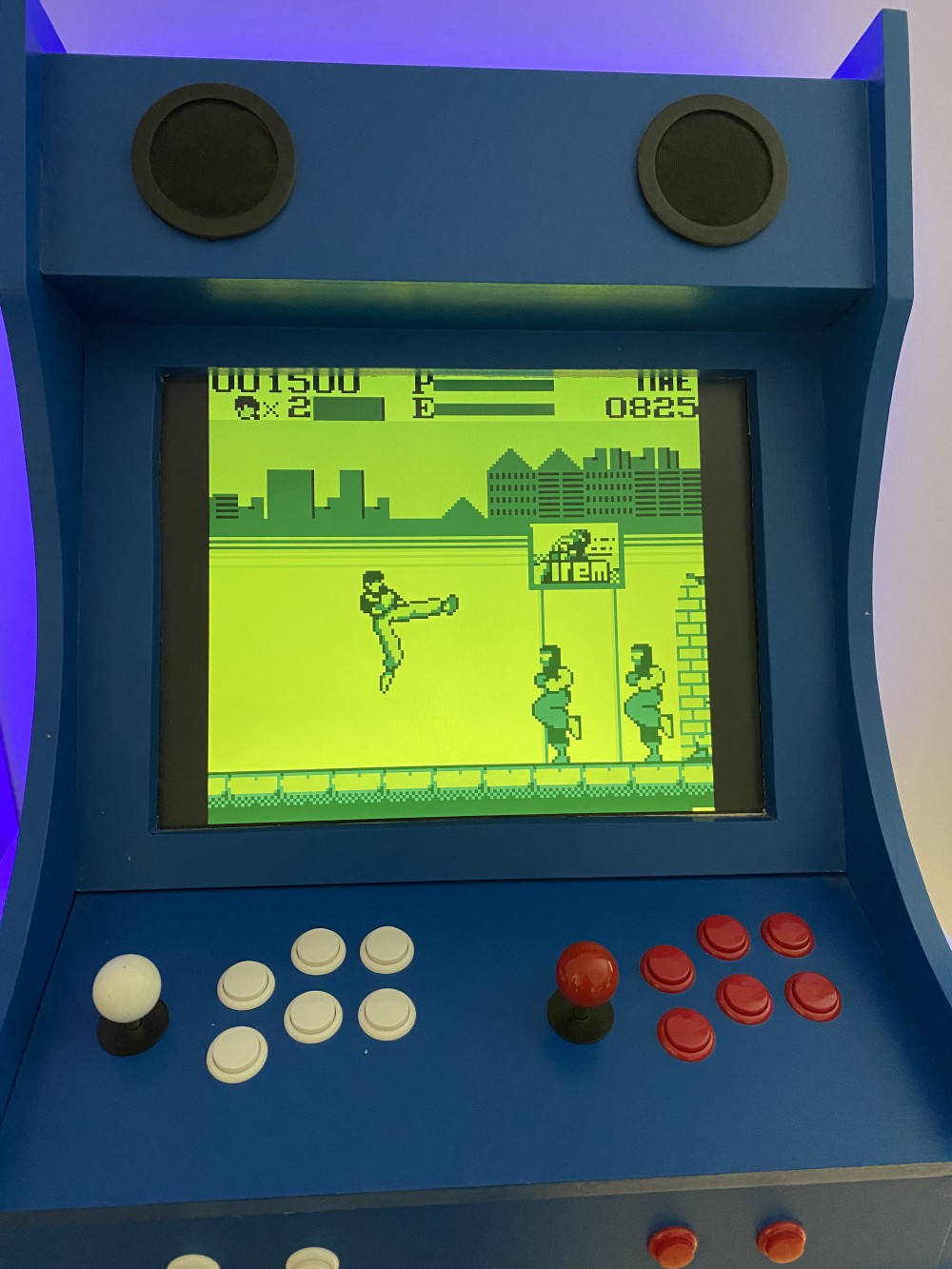

Kung Fu Master running on my DIY arcade

And apparently I still got it 😆 (also, this is probably the easiest game ever made for the Game Boy).

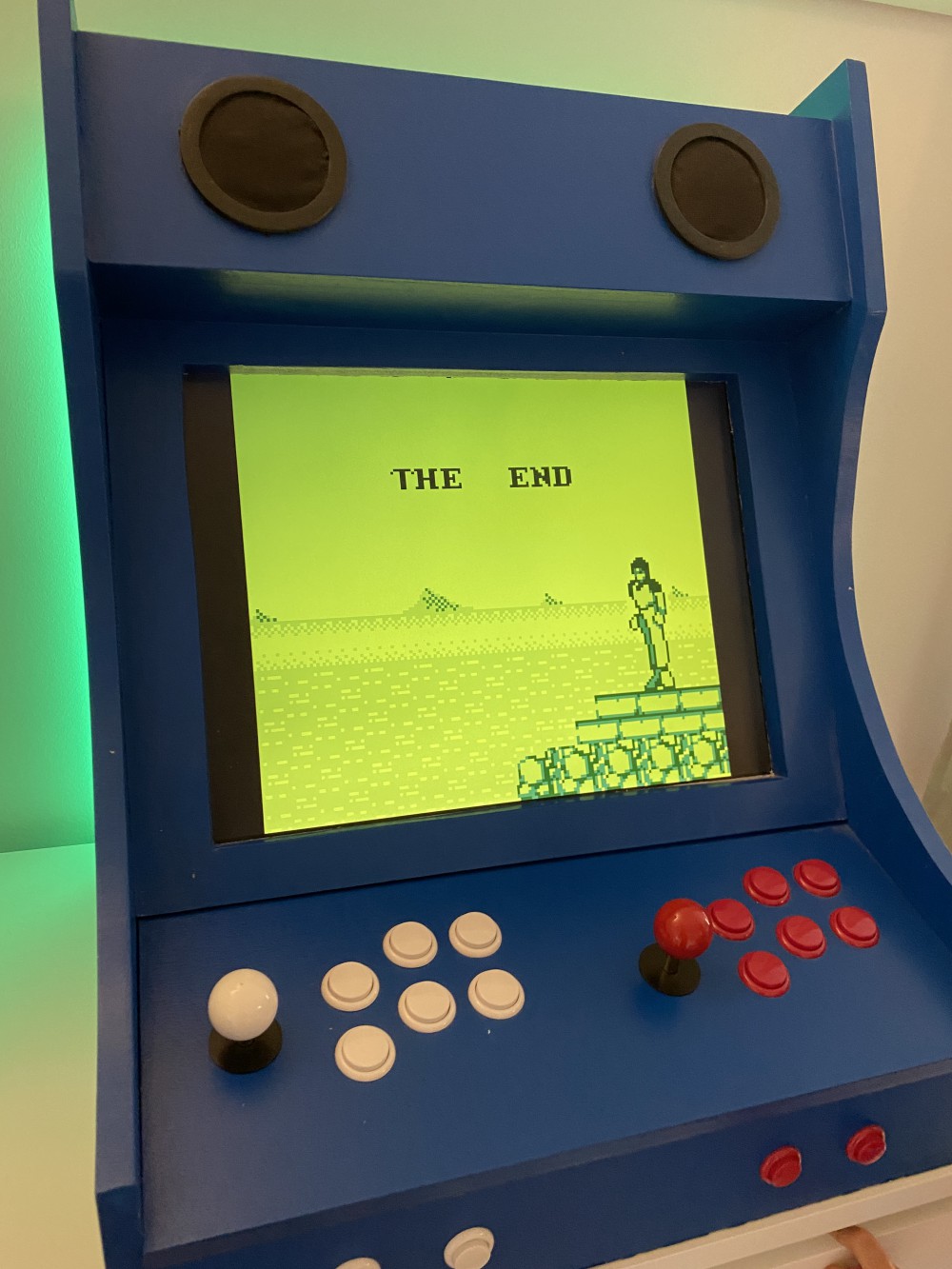

End screen of Kung Fu Master on my DIY arcade

The last device I wanted to try out was my custom made handheld, but unfortunately I was not able to power it on any more and my repair attempts fully destroyed the device 😬.

However, this device had felt very brittle from the beginning and I was never really happy with it. So this is a good opportunity to work a an improved version 2 of that. So stay tuned ...
